Laboratory Bench Dimensions: Standard Sizes & Planning Guide
Choosing the correct laboratory bench dimensions is essential for creating an efficient, safe, and comfortable laboratory. This guide explains standard laboratory bench sizes, recommended heights, aisle clearances, and planning tips to help you design the ideal laboratory workspace.
Introduction
Selecting the correct laboratory bench dimensions is one of the most important decisions during laboratory planning. Bench size directly affects workflow efficiency, equipment placement, operator comfort, and future expansion. A bench that is too narrow limits usable workspace, while one that is too deep or improperly positioned can reduce accessibility and create safety risks.
Whether you are designing a pharmaceutical laboratory, university laboratory, testing facility, or research center, understanding standard laboratory bench dimensions helps maximize available space while ensuring compliance with laboratory design principles. This guide explains the recommended laboratory bench sizes, heights, depths, and aisle clearances to help you create an efficient laboratory layout.
Quick Answer
The standard laboratory bench height is typically 850β900 mm (33β36 inches), with a bench depth of 750 mm (30 inches) for wall benches and 1500 mm (60 inches) for island benches. Aisles should generally be at least 1200β1500 mm (48β60 inches) wide to allow safe movement and equipment operation.
What Are Standard Laboratory Bench Dimensions?
Although every laboratory has unique requirements, most laboratory furniture manufacturers follow a set of standard dimensions that have been proven through years of practical application. These dimensions provide a balance between ergonomics, available workspace, and laboratory safety.
For wall laboratory benches, the most common depth is 750 mm (30 inches). This provides sufficient space for analytical instruments, small equipment, and routine laboratory work while allowing users to comfortably reach the back of the work surface.

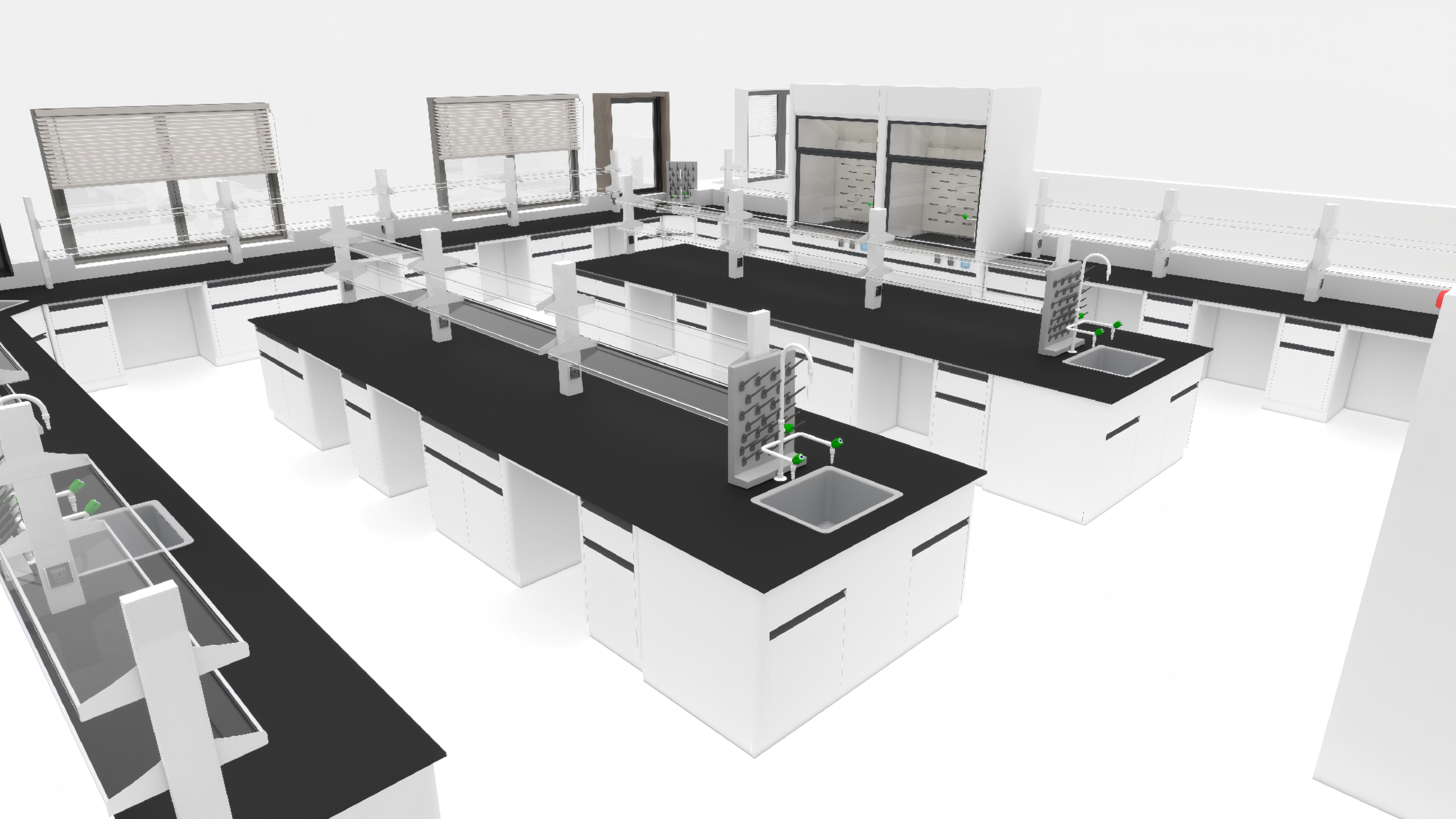

Island laboratory benches are generally much wider, with a standard depth of 1500 mm (60 inches). This allows researchers to work on both sides simultaneously while sharing utilities such as power outlets, gas valves, and reagent racks.
Laboratory bench length is highly flexible. Standard modules usually range from 1200 mm to 3000 mm, allowing laboratories to combine multiple sections into longer continuous workstations according to project requirements.
Recommended Laboratory Bench Height
Bench height has a direct impact on user comfort and productivity. A workstation that is too low may cause operators to bend forward for extended periods, while one that is too high can increase shoulder and arm fatigue during precise laboratory procedures.
For standing laboratories, the industry standard bench height is 850β900 mm (33β36 inches). This height accommodates most users while providing comfortable operation for common laboratory equipment.
Certain laboratories may require customized heights depending on their workflow. Instrument benches that support heavy analytical equipment are often designed slightly lower to improve stability, while cleanroom laboratories sometimes use specialized heights to match process requirements.
For laboratories that perform extended seated work, adjustable laboratory benches or dedicated seated workstations can significantly improve operator comfort and reduce long-term ergonomic strain.
Laboratory Aisle Clearance and Workspace Planning
Choosing the correct laboratory bench dimensions is only part of the planning process. Adequate aisle space between benches is equally important for ensuring safe movement, equipment transportation, and emergency access.
Most laboratory designers recommend maintaining a minimum aisle width of 1200 mm (48 inches) for standard laboratories. Laboratories with larger analytical instruments or higher personnel traffic may increase aisle widths to 1500 mm (60 inches) or more.
Proper spacing also allows cabinet doors and drawers to open fully without obstructing adjacent workstations. During the planning stage, designers should consider equipment dimensions, operator movement, and future expansion to avoid costly layout modifications after installation.
A well-designed laboratory layout not only improves efficiency but also creates a safer working environment for laboratory personnel.
How to Choose the Right Laboratory Bench Dimensions
There is no single laboratory bench size suitable for every project. The optimal dimensions depend on laboratory function, available floor space, equipment requirements, and future development plans.
Research laboratories often require larger work surfaces to accommodate sophisticated analytical instruments and multiple operators. Educational laboratories, on the other hand, usually prioritize flexible layouts that maximize student seating while maintaining safe working distances.
Before selecting laboratory furniture, project managers should evaluate the available installation area, utility locations, instrument sizes, storage requirements, and expected workflow. Working with an experienced laboratory furniture manufacturer can help optimize laboratory space while reducing unnecessary construction costs.
For laboratories planning long-term operation, selecting modular laboratory bench systems also provides greater flexibility for future expansion and equipment upgrades.
Recommended Standard Laboratory Bench Dimensions
Laboratory bench dimensions vary depending on laboratory type, available space, and workflow requirements. While there is no universal standard, most commercial laboratories follow common size ranges to ensure ergonomic operation and efficient equipment placement.
| Dimension | Recommended Size | Application |
|---|---|---|
| Bench Height | 850β900 mm | General laboratory work and standing operations. |
| Bench Depth | 750β900 mm | Provides sufficient workspace while maintaining comfortable reach. |
| Bench Length | 1200β1800 mm | Suitable for most laboratory layouts and equipment configurations. |
| Aisle Width | 1200β1800 mm | Allows safe movement of personnel and laboratory carts. |
Typical Applications
Laboratory bench dimensions should always be selected according to the intended laboratory application rather than following a one-size-fits-all standard. Different industries require different workspace configurations to accommodate equipment, personnel, and operational procedures.
For educational laboratories, modular benches with standard dimensions provide flexibility for future expansion and classroom reconfiguration. Pharmaceutical and research laboratories often require larger island benches to support advanced analytical instruments and collaborative workflows. Quality control laboratories typically benefit from compact layouts that maximize efficiency while maintaining adequate aisle clearance for safe movement.
Expert Tip
Avoid selecting laboratory bench dimensions based solely on available room size. Instead, determine the placement of major laboratory equipment first, then design bench dimensions and aisle spacing around the workflow. This approach creates a more efficient laboratory layout and minimizes costly modifications in the future.
When planning laboratory layouts, designers should also consider recommendations from ASHRAE regarding laboratory ventilation, occupancy, and safe workspace design to improve overall laboratory performance.
Frequently Asked Questions
What is the standard laboratory bench height?
The standard laboratory bench height is typically 850β900 mm, providing comfortable working conditions for most standing laboratory tasks.
What is the standard laboratory bench depth?
Most laboratory benches have a standard depth of 750β900 mm, offering sufficient workspace while maintaining comfortable access to equipment.
How much space should be left between laboratory benches?
Aisle spacing is generally recommended at 1200β1800 mm to allow safe movement, equipment transport, and efficient laboratory workflow.
Can laboratory bench dimensions be customized?
Yes. Laboratory bench dimensions can be customized according to laboratory layout, equipment requirements, and available space.
What laboratory bench size is best for research laboratories?
Most research laboratories use benches measuring 850β900 mm high, 750β900 mm deep, and 1200β1800 mm long to balance workspace and operational efficiency.
