LOCALIZED EXTRACTION

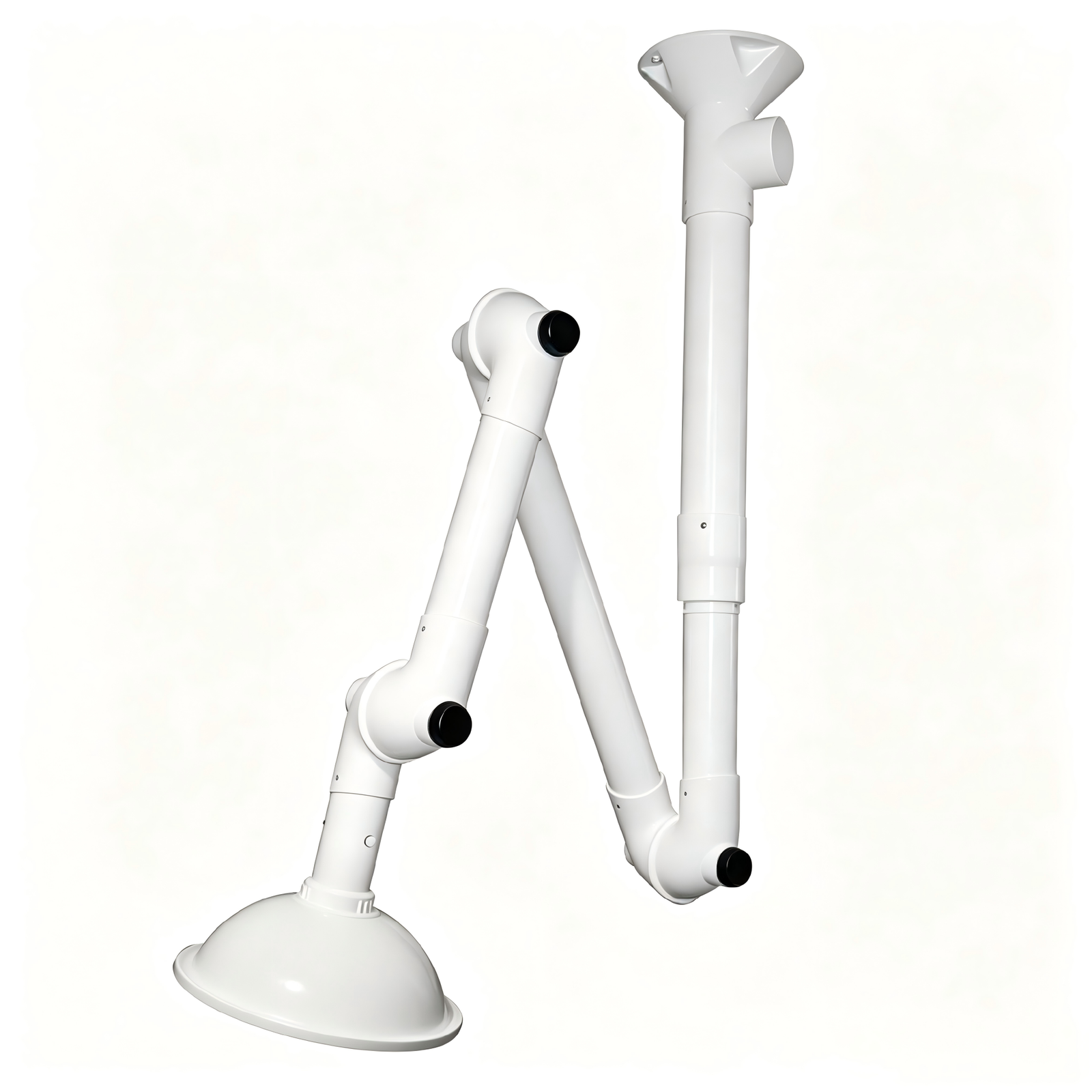

Laboratory Ventilation Cover | Laboratory Extraction Arm

Flexible joints universal ventilation cover and ceiling mounted extraction arm for localized laboratory fume and gas source capture.

Joint MaterialHigh Density Polypropylene with Three Hundred Sixty Degree Rotation
Hood DiameterThree Hundred Seventy Five Millimeter Transparent Red Polypropylene Dome
Support RodPremium Grade SUS304 Stainless Steel Internal Support Structure
Airflow ValveIntegrated Manual Flow Control Damper for Variable Volume Balancing

⚙️ Customization Available: All dimensions, cabinet configurations, and countertop materials can be tailored to your precise project layouts.

DESCRIPTION
SPECIFICATIONS
SHIPPING & DELIVERY

Engineered for Demanding Modern Research

The LANDRO universal ventilation cover provides highly flexible point of source contaminant capture for analytical laboratories, chemical testing environments, and electronic soldering workstations.

This multi jointed laboratory extraction arm can be effortlessly positioned directly above volatile reactions or heat sources, exhausting harmful smoke, chemical vapors, and fine dust particulates before they disperse into the ambient room breathing zone. Constructed from high grade chemical resistant polymers, the entire assembly maintains exceptional positional stability over thousands of adjustments. Its transparent dome shape design optimizes aerodynamic air capture without blocking critical task lighting or operator sightlines.

Component Technical Standards & Material Specification
Joint Elements Virgin high density polypropylene rings complete with low friction rubber joints and adjustable tension locking knobs.
Pipeline Tube 75mm or 110mm diameter thick wall polypropylene piping, resistant to standard solvent evaporation and acid vapors.
Mounting Base Heavy duty roof ceiling bracket or wall plate anchor fabricated from powder coated structural carbon steel.
Spring Support Built in self balancing spring mechanism made from stainless steel to prevent sagging after position adjustment.
Sealing Ring Low friction chemical resistant EPDM synthetic rubber seals preventing vacuum leaks throughout the elbow joints.

📦 Packaging Method

All laboratory furniture components are packed using high-density foam edge protectors, multi-layer bubble wrap, and heavy-duty ISPM 15 certified export wooden crates to ensure zero-scratch delivery during international sea transit.

⏱️ Lead Time & Logistics

Standard manufacturing cycle is 15-25 business days from layout drawing approval. We offer full-container load (FCL) and less-than-container load (LCL) global ocean freight handling to any destination seaport.

QUALIFICATION & CERTIFICATES

CE Certificate
EU COMPLIANCE
SGS Report
SGS TEST REPORT
ISO 9001
ISO 9001 SYSTEM
SGS Factory Audit
CE COMPLIANCE
NOA Cert
NOA MANAGEMENT

READY TO PLAN YOUR LAB?

Partner with Landro’s engineering team to build a safe, efficient, and fully compliant research environment.

  • Free Consultation — Discuss your workflow and spatial constraints with experts.
  • Compliance Assured — Standardized designs passing SEFA & ASHRAE audits.
  • 3D Concept Preview — Visualize your laboratory before committing to construction.
